| 유형: | 스프라그 | 정밀 등급: | P0 |
|---|---|---|---|
| 밀봉 종류: | 열려 있는 | Sprag 자료: | GCR15 |
| 두께: | 10mm | Sprag 수량: | 12 조각 |
| 토크 용량: | 63nm | 외경: | 38.885 |
| 보어 크기: | 22.225 | 무게: | 0.03kg |
| 오버런 속도 (외부): | 750 | 오버런 속도 (내부): | 1500 |
| 표면 경도: | HRC 60-62 | 코어 경도: | HRC35-45 |
| 표면 거칠기: | 22CLA | ||
| 강조하다: | 22.225mm bore sprag clutch bearing,one way bearing 63Nm torque,DC2222G one way clutch bearing |
||
| Attribute | Value |
|---|---|
| Applicable Industries | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Printing Shops, Construction works, Energy & Mining, Food & Beverage Shops |
| Type | SPRAG |
| Precision Rating | P0 |
| Seals Type | OPEN |

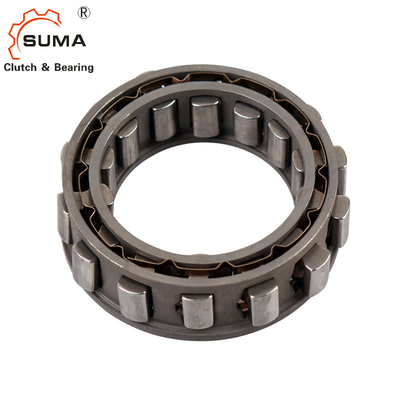

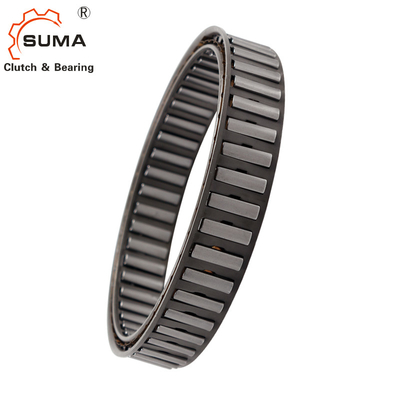

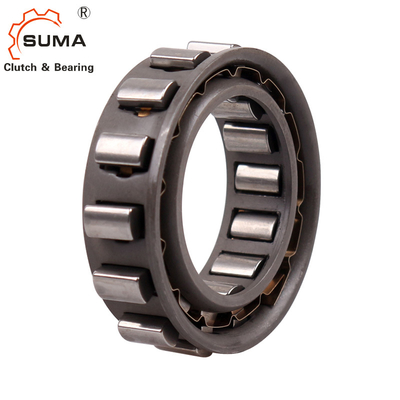

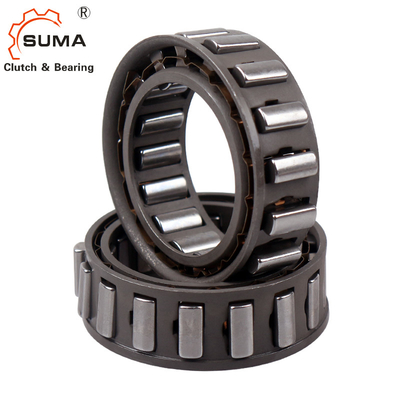

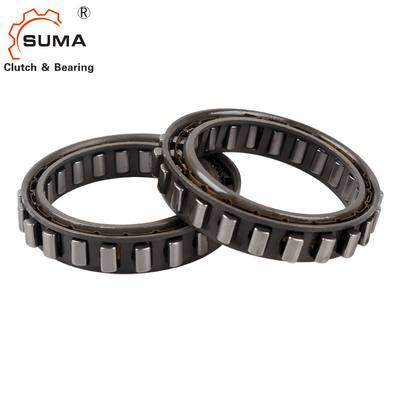

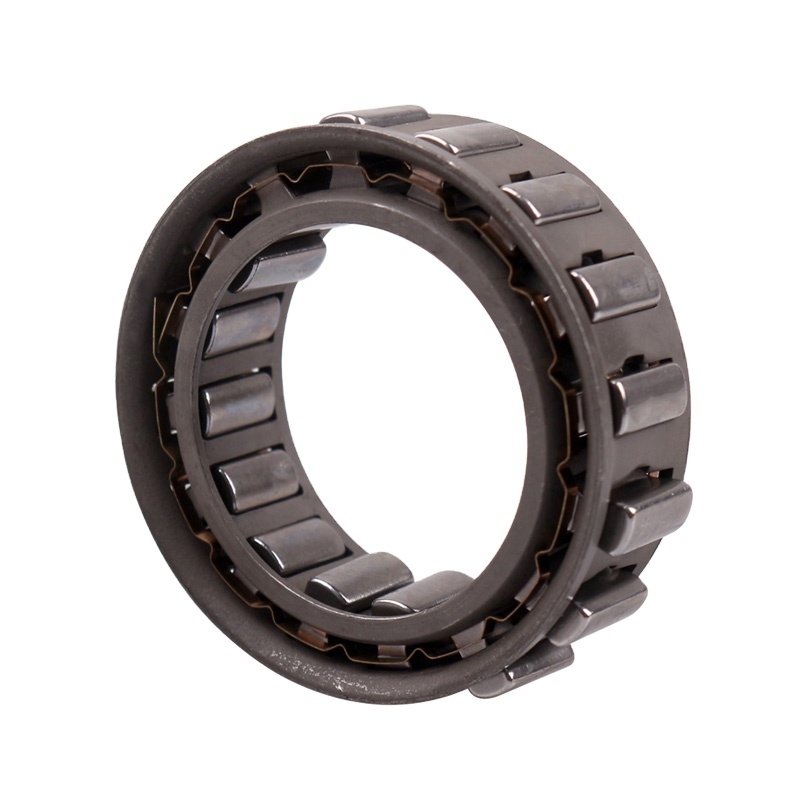

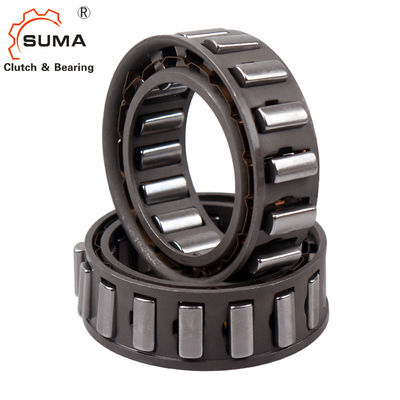

| Product Name | Sprag Clutch DC2222G-N |
| Sprag Material | Gcr15 |
| Thickness | 10mm |
| Sprag Quantity | 12 Pieces |
| Torque Capacity | 63Nm |
| Package | Each in white box + Carton Box |
| Delivery | 1-2 Days |
| Service | OEM Service |
| Port | Shanghai; Ningbo |
| Item | DC2222G-N |
|---|---|
| Outer Diameter | 38.885 |
| Bore Size | 22.225 |
| Nominal Torque | 63 |
| Weight | 0.03kg |
| Sprags Quantity | 12 |
| Overrunning Speed (outer race) | 750 |
| Overrunning Speed (inner race) | 1500 |
| Port | Shanghai; Ningbo |
| Delivery Time | 1-2 Days |
| Type | Drag Torque (NM) | Size (mm) | Number of Clips |
|---|---|---|---|
| DC2222G | 50 | 22.225 | 17 |
| DC2776 | 95 | 27.762 | 21 |
| DC3034 | 99 | 30.34 | 23 |
| DC3175(3C) | 127 | 31.75 | 24 |
| DC3809A | 220 | 38.092 | 29 |
| DC4127(3C) | 179 | 41.275 | 32 |
| DC4445A | 290 | 44.45 | 34 |
| DC4972(4C) | 245 | 49.721 | 38 |
| DC5476A | 420 | 54.765 | 42 |
It is highly encouraged to ask for samples for quality check.
