ASK Series One Way Clutch Bearing 40-60mm Inner Dia Sealed

ASK Series One Way Clutch Bearing 40-60mm Inner Dia Sealed

  • ASK Series One Way Clutch Bearing 40-60mm Inner Dia Sealed
ASK Series One Way Clutch Bearing 40-60mm Inner Dia Sealed
제품 상세 정보:
원래 장소: 중국 장수
모델 번호: 질문하세요
결제 및 배송 조건:
최소 주문 수량: 1
접촉
상세 제품 설명
정밀 등급: P0 행의 수: 단일 행
재료: GCR15 내 직경: 40-60MM
외경: 68-95 mm 너비: 15~18mm
무게: 0.25-0.5 kg 구조: 깊은 그루브
유형: 보어 크기: 40 - 60 밀리미터
밀봉 종류: 봉인 동적 하중: 16-25.3 kn
정적 부하: 20.6-35.1 kn 최대 속도: 1800-3500 분 -1
당기 톱크: 15-25 ncm
강조하다:

40mm one way clutch bearing sealed

,

60mm one way clutch bearing

,

sealed one way clutch bearing

China Bearing Manufacturer One Way Clutch Indexing Clutch ASK
Product Attributes
Attribute Value
Applicable Industries Machinery Repair Shops, Food & Beverage Factory, Energy & Mining
Precision Rating P0
Number of Row Single row
Material Gcr15
Inner diameter 40-60 mm
Outer diameter 68-95 mm
Width 15-18 mm
Weight 0.25-0.5 kg
Package Cartons Paper Box
Port Shanghai; Ningbo
Delivery time Prompt
Application Machinery
Structure Deep Groove
Type BALL
Bore Size 40 - 60 mm
Seals Type Sealed
Product Description
Product Model: ASK

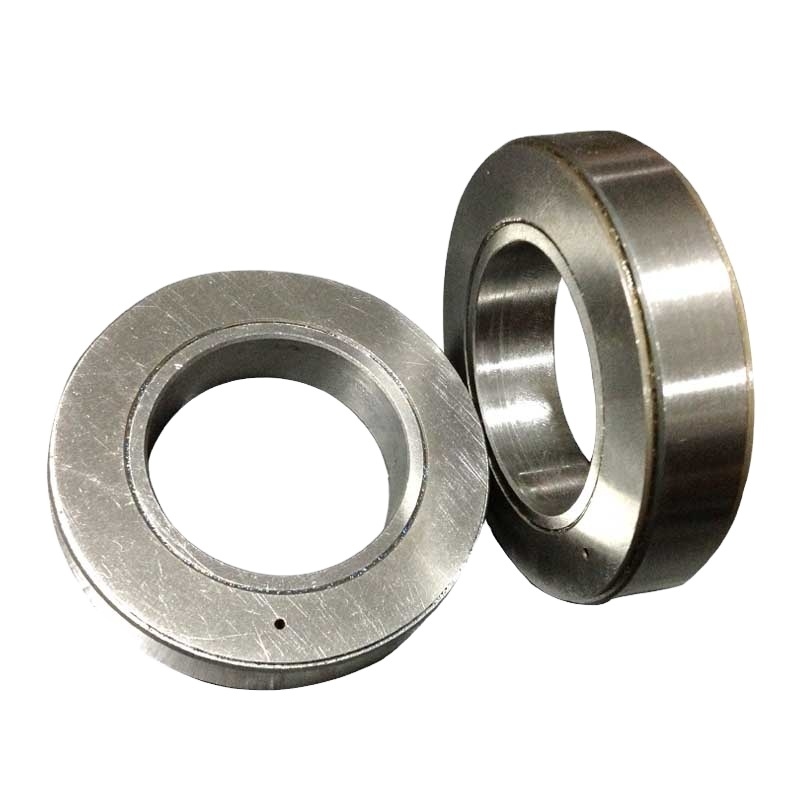

Type ASK is a roller type freewheel bearing supported by two rows of roller bearings. It is a self-contained dust protected unit, delivered grease lubricated.
ASK Series One Way Clutch Bearing 40-60mm Inner Dia Sealed 0
Nominal outside dimensions are the same as a 60...Series bearing. Torque transmission must be ensured by a press fit on both the inner and outer race. Because of this press fit, the standard radial clearance is C4. The interference tolerances are on the freewheel dimensions, allowing a direct mounting in a standard series 60...Bearing location: Shaft tolerance should be h6 or j6. The Outer race should be pressed into a rigid housing to K6 tolerance.
Radial bearing load capacities are given in the table. Type ASK freewheels cannot accept axial loading. In cases of such loads, thrust bearings must be provided.
ASK Series One Way Clutch Bearing 40-60mm Inner Dia Sealed 1
Technical Specifications
Type Size Bearing Series TKN1 (Nm) nmax (min-1) Outside Diameter (mm) Height (mm) Bearing loads Dynamic (kN) Bearing loads Static (kN) Weight (kg) Drag torque (Ncm)
ASK 40 6008 72 3500 68 15 16 20.6 0.25 15
ASK 50 6010 125 2200 80 16 19.6 23.5 0.34 20
ASK 60 6012 250 1800 95 18 25.3 35.1 0.5 25
Product Images
ASK Series One Way Clutch Bearing 40-60mm Inner Dia Sealed 2 ASK Series One Way Clutch Bearing 40-60mm Inner Dia Sealed 3 ASK Series One Way Clutch Bearing 40-60mm Inner Dia Sealed 4
Packaging
ASK Series One Way Clutch Bearing 40-60mm Inner Dia Sealed 5 ASK Series One Way Clutch Bearing 40-60mm Inner Dia Sealed 6
