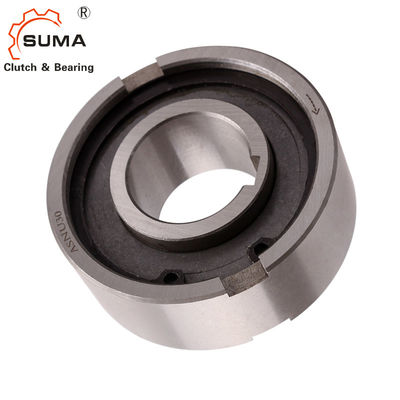

ASNU40 One Way Clutch Bearing 40mm Bore Roller Type

ASNU40 One Way Clutch Bearing 40mm Bore Roller Type

  • ASNU40 One Way Clutch Bearing 40mm Bore Roller Type
  • ASNU40 One Way Clutch Bearing 40mm Bore Roller Type
  • ASNU40 One Way Clutch Bearing 40mm Bore Roller Type
  • ASNU40 One Way Clutch Bearing 40mm Bore Roller Type
  • ASNU40 One Way Clutch Bearing 40mm Bore Roller Type
  • ASNU40 One Way Clutch Bearing 40mm Bore Roller Type
ASNU40 One Way Clutch Bearing 40mm Bore Roller Type
제품 상세 정보:
원래 장소: Jiangsu
브랜드 이름: SUMA or OEM
모델 번호: ASNU40
결제 및 배송 조건:
최소 주문 수량: 2
가격: $17-22
접촉
상세 제품 설명
보어 크기: 40 - 40.001mm 정밀 등급: P0
행의 수: 단일 행 유형: 롤러 / 스프 라그 타입, 바늘
무게: 0.92 킬로그램 재료: GCR15
토크: 538nm 밀봉 종류: 밀봉하다
초과 속도: 1100 분 -1 최대 속도: 1700 분 -1
외경: 90mm 내 직경: 78 밀리미터
너비: 33mm 키웨어 너비: 12 mm
당기 톱크: 38 ncm
강조하다:

40mm one way clutch bearing

,

roller type clutch bearing

,

one way bearing with 40mm bore

NFS 40 One Way Clutch Bearing ASNU 40 Roller Bearing ASNU40
Product Specifications
Attribute Value
Applicable Industries Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works, Energy & Mining
Bore Size 40 - 40.001 mm
Precision Rating P0
Number of Row Single row
Type Roller / Sprag Type, Needle
Weight 0.92kg
Material GCr15
Torque 538Nm
Seals Type Seal
Package Carton Box
Delivery 1-2 Days
Product Description

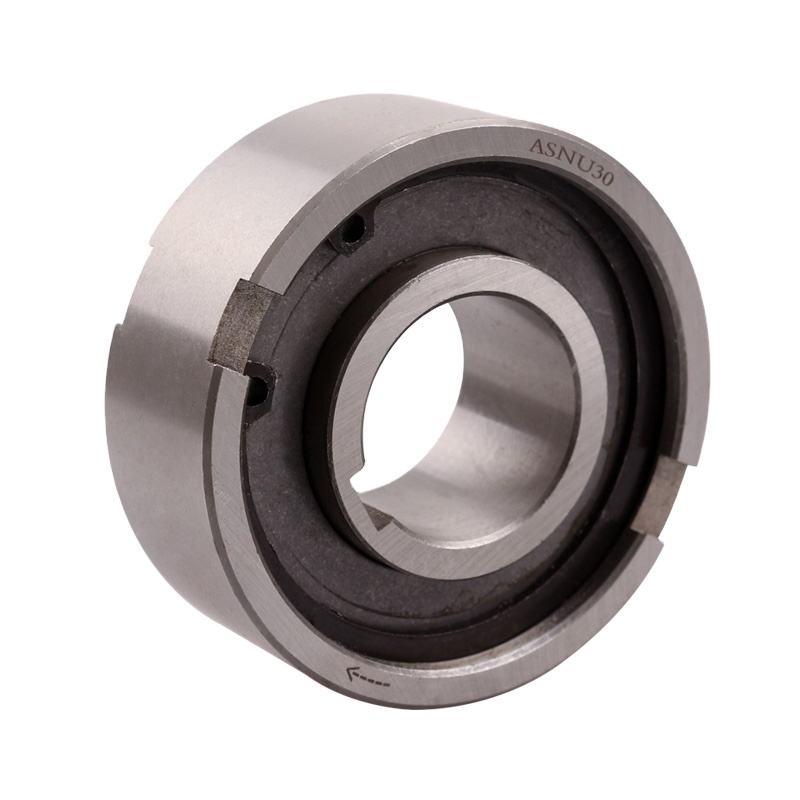

ASNU40 One Way Clutch Bearing 40mm Bore Roller Type 0
Key Features
  • Type ASNU is a roller type freewheel nonbearing supported
  • Bearings are required to support axial and radial loads
  • Lubrication and sealing must be provided by the installation
  • Nominal outer diameter matches series 63 ball bearings
  • Inner race is keyed to the shaft for secure mounting
  • Outer race has positive n6 tolerance for press fit in H7 housing
  • Additional side notches in outer race for positive torque transmission
  • Can accept axial misalignment of inner and outer race of ± S/2

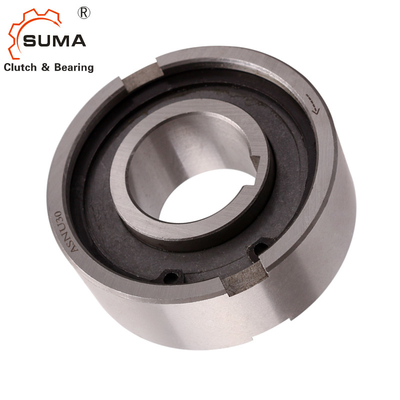

ASNU40 One Way Clutch Bearing 40mm Bore Roller Type 1
Technical Specifications
Type Size Overrunning Speeds Weight Drag Torque
ASNU dH7 1100 min-1 0.92kg 38 Ncm
Mounting Example
ASNU40 One Way Clutch Bearing 40mm Bore Roller Type 2
Detailed Images

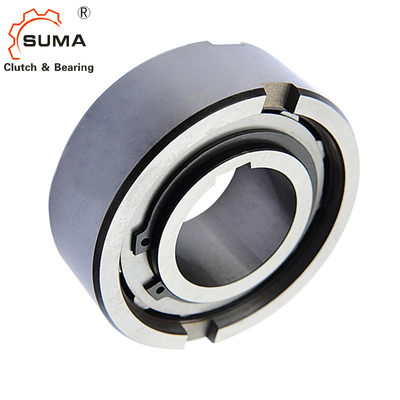

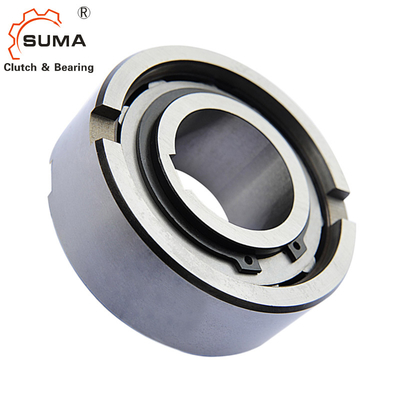

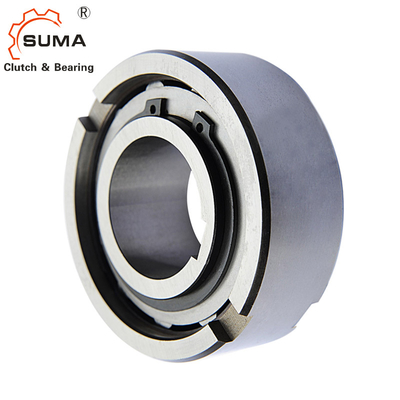

ASNU40 One Way Clutch Bearing 40mm Bore Roller Type 3 ASNU40 One Way Clutch Bearing 40mm Bore Roller Type 4 ASNU40 One Way Clutch Bearing 40mm Bore Roller Type 5
Packaging & Shipping

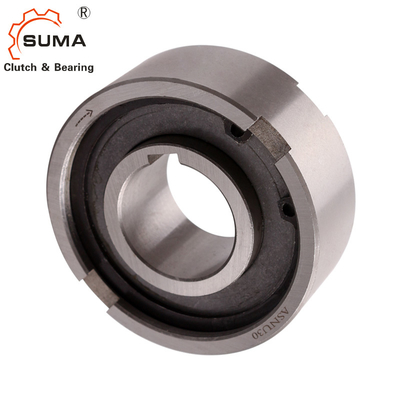

ASNU40 One Way Clutch Bearing 40mm Bore Roller Type 6
Frequently Asked Questions
How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box

Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get samples from you?
It is highly encouraged to ask for samples for quality check.
Can you promise to deliver the goods in time?

Small items: In stock

Medium Items: 10-15 Days

Big items: 20-25 Days
