| 유형: | 스프라그 | 정밀 등급: | P0 |
|---|---|---|---|
| 밀봉 종류: | 봉인 | 재료: | GCr15 강철 |
| 두께: | 27mm | 토크 용량: | 204nm |
| 무게: | 0.2kg | 내 직경: | 35mm |
| 외경: | 55mm | 베어링 유형: | 스프 라그 베어링 |
| 구조: | 스프래그 유형 | 오버러닝 속도: | 4600 min-1 (동적), 3200 분 -1 (정적) |
| 동적 하중: | 8200N (롤러), 8500N (공) | 정적 부하: | 5200N (롤러), 5700N (공) |
| 베어링 시리즈: | 5907 | ||
| 강조하다: | 35mm sprag clutch bearing,one way clutch bearing 55mm OD,high torque clutch bearing 204Nm |
||
| Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction Works, Energy & Mining |
| Type | Sprag |
| Precision Rating | P0 |
| Seals Type | Sealed |
| Material | Steel |
| Product Name | Sprag Type Clutch |
| Thickness | 27MM |
| Torque Capacity | 204Nm |
| Weight | 0.2 Kg |
| Delivery Time | 1-2 Days |
| Package | Carton Box |
| Bearing Type | Sprag Bearing |
| Structure | Sprag Type |

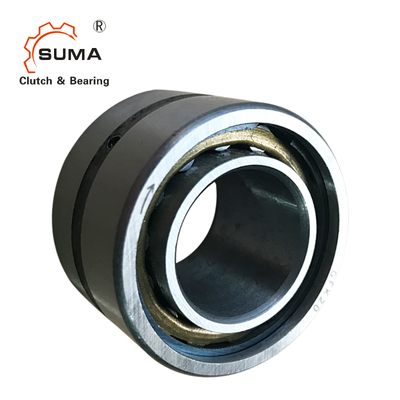

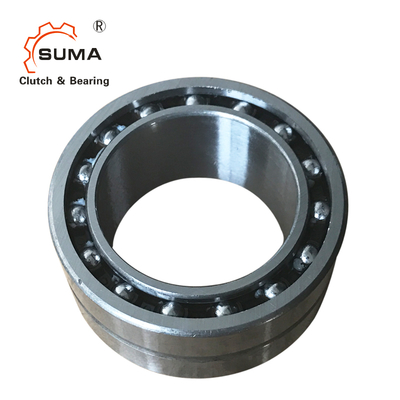

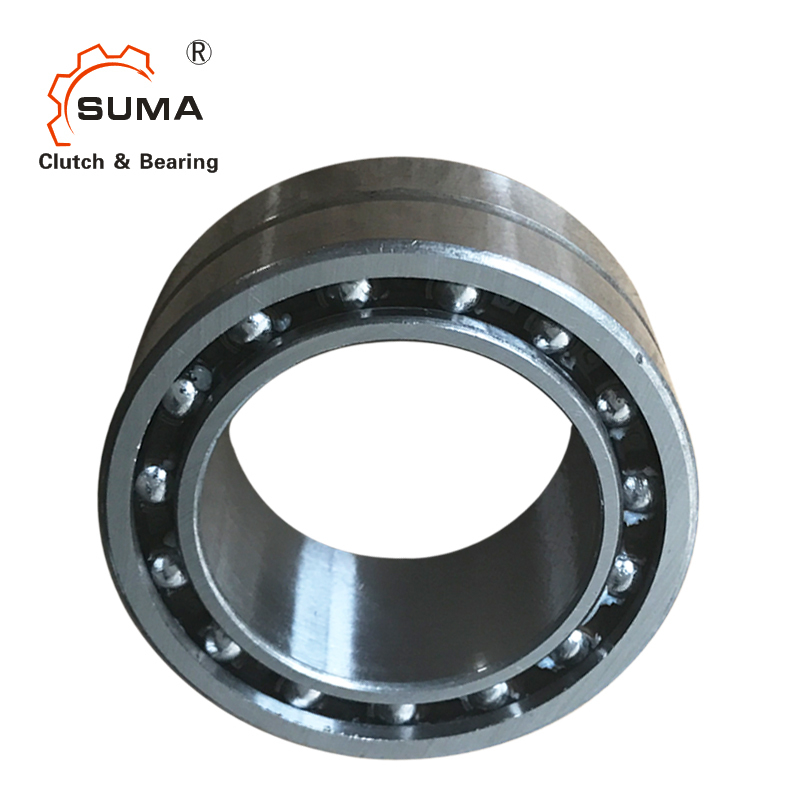

The GFK35 Sprag Type Clutch is a sprag freewheel integrated into a 59 series ball bearing, designed to provide high torque capacity for minimal outside diameter.
Torque transmission must be ensured by a press fits assembly into a rigid outer housing with R6 tolerance, and onto a shaft with P5 tolerance.
| Type | Size (mm) | TKN1 (Nm) | n imax2 (min-1) | n amax3 (min-1) | Bearing Series | C (N) | C0 (N) | D (mm) | L (mm) | r (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| GFK | 20 | 51 | 5500 | 4000 | 5904 | 5600 | 2900 | 37 | 23 | 0.5 | 0.09 |
| GFK | 25 | 65 | 5300 | 3800 | 5905 | 6300 | 3450 | 42 | 23 | 0.5 | 0.11 |
| GFK | 30 | 95 | 5000 | 3500 | 5906 | 7700 | 4600 | 47 | 23 | 0.5 | 0.13 |
| GFK | 35 | 204 | 4600 | 3200 | 5907 | 8200 | 5200 | 55 | 27 | 1 | 0.2 |
| GFK | 40 | 315 | 4200 | 3000 | 5908 | 8650 | 5750 | 62 | 30 | 1 | 0.3 |
| GFK | 45 | 370 | 3800 | 2500 | 5909 | 9200 | 6350 | 68 | 30 | 1 | 0.34 |
| GFK | 50 | 460 | 3400 | 2200 | 5910 | 9650 | 6950 | 72 | 30 | 1 | 0.36 |
