| 정밀 등급: | P0, P6 | 밀봉 종류: | 봉인 |
|---|---|---|---|
| 재료: | GCR15 | 보어 크기: | 90mm |
| 너비: | 158mm | 토크 용량: | 14500nm |
| 무게: | 47.2 킬로그램 | 외경: | 230mm |
| 초과 속도: | 450 분 -1 | 정밀도 비율: | P6 |
| 유형: | GFR 시리즈 | 베어링 지원: | 160 시리즈 베어링 |
| 윤활 요구 사항: | 오일은 기름을 쳤습니다 | 볼트 클리어런스를 중지하십시오: | 볼트 직경의 13% |
| 키웨어 표준: | DIN 6885.1 | ||
| 강조하다: | 90mm one way roller bearing,one way clutch bearing 14500Nm torque,GFR90 roller bearing with warranty |
||
| Item | GFR90F2F3 F3F4 |
|---|---|
| Material | GCr5 |
| Outer diameter | 230 mm |
| Bore size | 90 mm |
| Width | 158 mm |
| Torque | 14500 Nm |
| Weight | 47.2 kg |
| Overrunning speed | 450 min-1 |
| Precision rate | P6 |
| Port | Shanghai; Ningbo |
| Delivery time | 7-10 days |

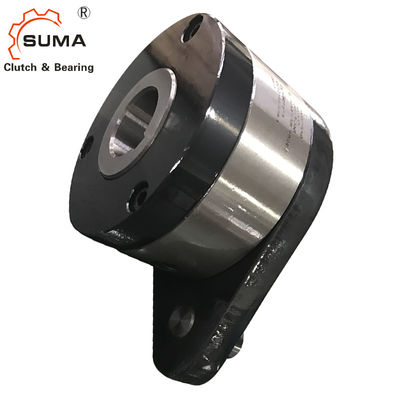

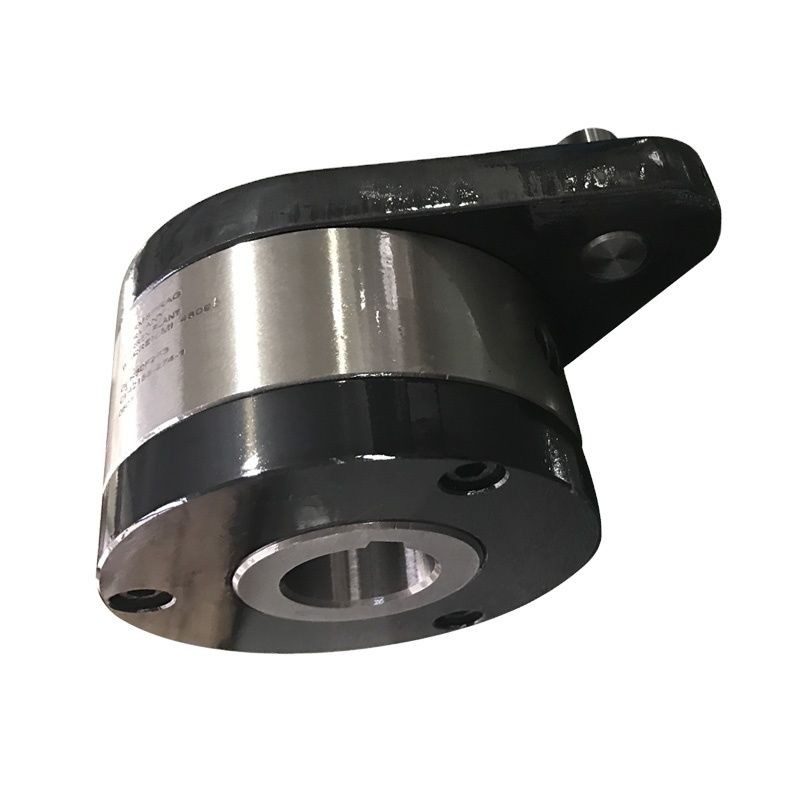

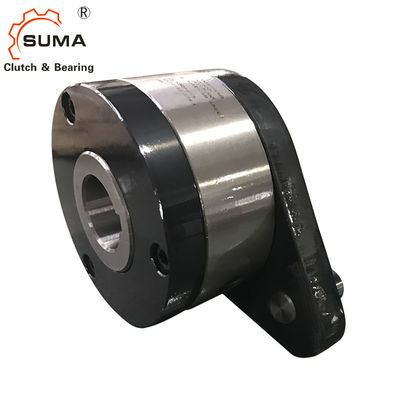

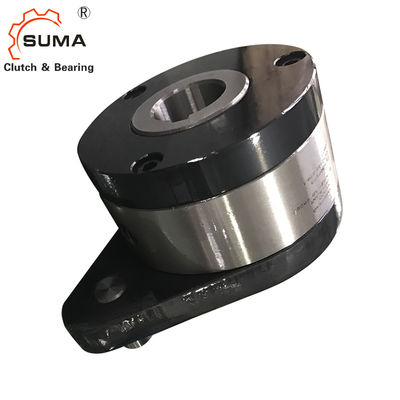

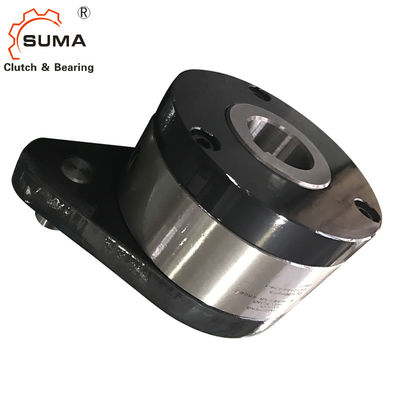

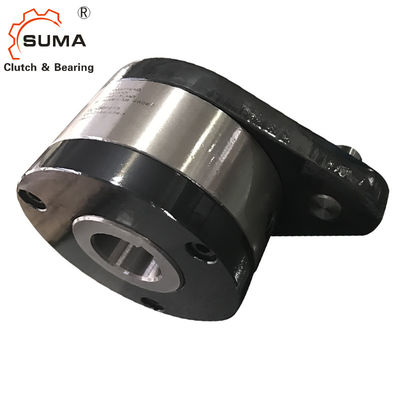

Types GFR..F2F3/F3F4 are roller type freewheels, self-contained, sealed and bearing supported, using two 160 series bearings. They use the GFR base module.
1) T max = 2 × T KN
2) Inner race overruns
Keyway to DIN 6885.1 standard
When ordering assembled, specify rotation direction from arrow "A": "R" for clockwise, "L" for counter-clockwise
Specialized manufacturer of cam clutches, one way bearings, backstop clutches, and overrunning clutches with high technology.
A: We maintain strict quality control with our own bearing factory, offering competitive pricing for one way clutch bearings.
A: Most bearings are in stock. Small quantities ship within 15 days.
A: We accept L/C, T/T, Western Union, and Paypal.
A: Yes, we can provide samples for quality verification.
Contact us for any additional requirements or questions about our GFR90 F2F3 F3F4 One Way Roller Bearings.
