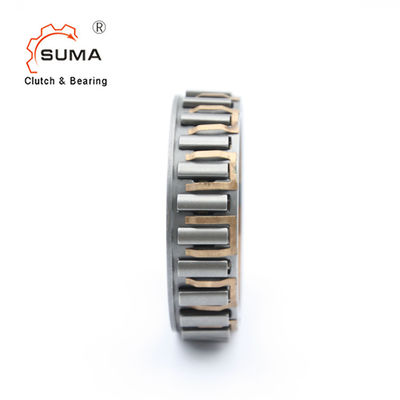

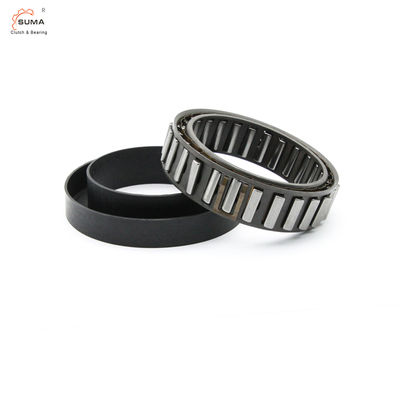

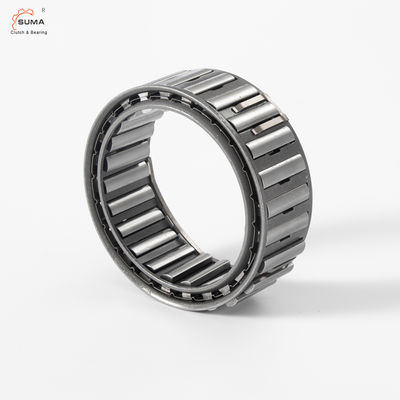

Name: Sprag Clutch DC 5776B 4C One Way Bearing 63Nm Torque 10mm Thickness
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: DC 5776B 4C
Price: 5.60 USD
Availability: InStock

홈 제품 소개 한 방법 크러치 베아링

Sprag Clutch DC 5776B 4C One Way Bearing 63Nm Torque 10mm Thickness

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	SUMA
모델 번호:	DC 5776B 4C

결제 및 배송 조건:

최소 주문 수량:	2
가격:	$5.60-7

접촉

상세 제품 설명

정밀 등급:	P0	밀봉 종류:	열려 있는
유형:	스프라그	Sprag 자료:	GCR15
두께:	10mm	Sprag 수량:	12 조각
토크 용량:	63nm	외경:	74.42
보어 크기:	57.76	무게:	0.03kg
오버런 속도 (외부):	750	오버런 속도 (내부):	1500
표면 경도:	HRC 60-62	코어 경도:	HRC35-45
표면 거칠기:	22CLA
강조하다:	Sprag clutch one way bearing 63Nm torque , DC 5776B one way clutch bearing , 10mm thickness one way bearing

DC5776A DC5776B DC5776C Sprag Overrunning Clutch One Way Bearing

High-quality sprag type freewheel cage without inner or outer races, designed for power transmission equipment.

Product Specifications

Item	DC5776-N
Outer Diameter	74.42
Bore Size	57.76
Nominal Torque	63
Weight	0.03kg
Sprags Quantity	12
Overrunning Speed (outer race)	750
Overrunning Speed (inner race)	1500
Port	Shanghai; Ningbo
Delivery Time	1-2 Days

Key Features

Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing.

The DC type version-N accepts all types of lubricants currently used in the power transmission equipment.

Tolerance Requirements

The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure proper freewheel function.

Hardness Specifications

Surface hardness: HRC 60 to 62 (minimum depth of 0.6mm)
Core hardness: HRC 35 to 45
Surface roughness not to exceed 22CLA
Maximum taper between races: 0.007mm for 25mm width

Available Sizes

Type	Drag Torque (NM)	Size (mm)	Number of Clips
DC2222G	50	22.225
DC2776	95	27.762
DC3034	99	30.34
DC3175(3C)	127	31.75	3
DC3809A	220	38.092
DC4127(3C)	179	41.275	3
DC4445A	290	44.45
DC4972(4C)	245	49.721	4
DC5476A	420	54.765
DC5776A	483	57.76
