Name: BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: BS 75
Price: 160 USD
Availability: InStock

홈 제품 소개 한 방법 크러치 베아링

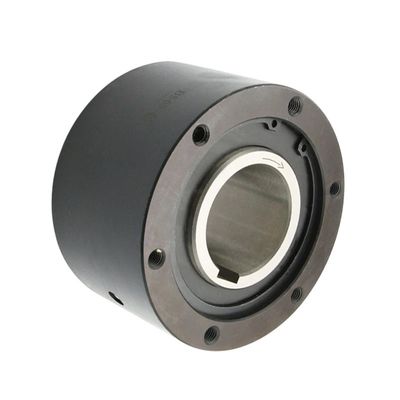

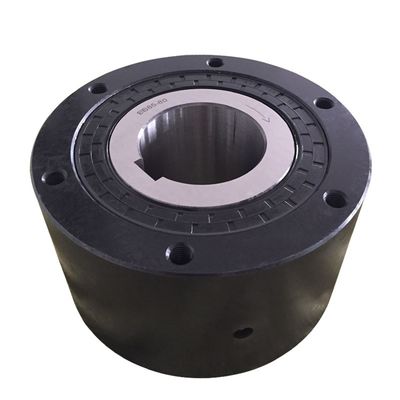

BS75 One Way Clutch Bearing 2450Nm Torque 90mm Width

제품 상세 정보:

원래 장소:	중국 장수
브랜드 이름:	SUMA
모델 번호:	BS 75

결제 및 배송 조건:

최소 주문 수량:	2
가격:	$160

접촉

상세 제품 설명

정밀 등급:	P0	밀봉 종류:	봉인
유형:	캠	토크 용량:	2450nm
최대 초과 속도:	300 R/min	너비:	90mm
당기 톱크:	5.88 n*m	내부 레이스:	90mm
바깥 레이스:	170 mm	PCD 직경:	150 mm
볼트 구멍 크기:	M10 × P1.5 × 6	무게:	13.1KG
지름 지름 범위:	100 ~ 160 mm	기름칠 필러 구멍:	PT 1/4
수량 그리스:	0.12kg
강조하다:	One Way Clutch Bearing 2450Nm Torque , 90mm Width Clutch Bearing , BS75 One Way Clutch Bearing

BS Series One Way Backstop Cam Clutch Bearing BS75 Power Transmission Parts

Product Overview

The BS series Cam Clutches are designed for applications requiring prevention of reverse rotation in slow speed conveyor head shafts (backstopping).

Technical Specifications

Models BS30 to BS135

Model	Torque Capacity (N*m)	Max. Overrunning (r/min)	Drag Torque (N*m)	A	B	C	PCD D	E	S	H-M Size×Pitch×No. of Tapped Holes	Grease Filler Hole (Size)	Q'ty Grease (kg)	Weight (Kg)
BS30	294	350	0.58	64	90	64	80	45	13	M6×P1.0×4	-	-	21
BS50	784	300	0.98	67	125	67	110	70	16	M8×P1.25×4	-	-	4.0
BS65	1570	340	3.92	90	160	85	140	90	20	M10×P1.5×6	-	-	11.5
BS75	2450	300	5.88	90	170	85	150	100	20	M10×P1.5×6	-	-	13.1
BS85	5880	300	7.84	115	210	110	185	115	30	M12×P1.75×6	-	-	24.7
BS95	7840	250	9.8	115	230	110	200	130	30	M14×P2.0×6	-	-	29.4
BS110	10800	250	14.7	115	270	110	220	150	30	M16×P2.0×6	-	-	34.2
BS135	15700	200	19.6	135	320	130	280	180	30	M16×P2.0×8	-	-	68

Models BS160 to BS450

Model	Torque Capacity (N*m)	Max. Overrunning (r/min)	Drag Torque (N*m)	A	B	C	PCD D	E	S	H-M Size×Pitch×No. of Tapped Holes	Grease Filler Hole (Size)	Q'ty Grease (kg)	Bore Diameter Range (mm)	W. Max kg	W. Min kg
BS160	24,500	100	33.1	130	360	130	315	220	40	M20×P2.5×10	PT 1/4	0.12	100-160	98.1	85.6
BS200	37,200	100	44.1	150	430	145	380	265	40	M22×P2.5×8	PT 1/4	0.14	100-200	167	140
BS220	49,000	80	73.5	235	500	230	420	290	40	M20×P2.5×16	PT 1/4	0.8	150-220	301	264
BS250	88,200	50	93.1	295	600	290	530	330	50	M24×P3.0×16	PT 1/4	1.1	175-250	580	523
BS270	123,000	50	98	295	650	290	575	370	50	M24×P3.0×16	PT 1/4	1.2	200-270	620	562
BS300	176,000	50	108	295	780	290	690	470	60	M30×P3.5×16	PT 1/4	1.3	230-300	952	885
BS335	265,000	50	137	305	850	320	750	495	70	M36×P4.0×16	PT 1/4	1.4	250-335	1,140	1,040
BS350	314,000	50	157	320	930	360	815	535	70	M36×P4.0×16	PT 1/4	1.5	250-350	1,600	1,470
BS425	510,000	50	216	440	1,030	450	940	635	70	M36×P4.0×18	-	Oil 6,000ml	325-425	2,450	2,240
BS450	686,000	50	245	450	1,090	480	990	645	80	M42×P4.5×18	-	Oil 7,000ml	350-450	2,820	2,580
