Name: CAM Clutch Bearing MI500 MG500 31.5mm Bore Sealed P0 Precision
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: MI500 MG500
Price: 100 USD
Availability: InStock

홈 제품 소개 한 방법 크러치 베아링

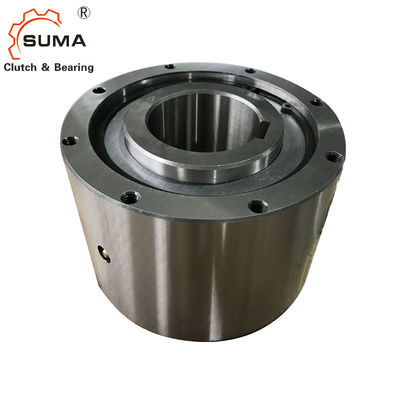

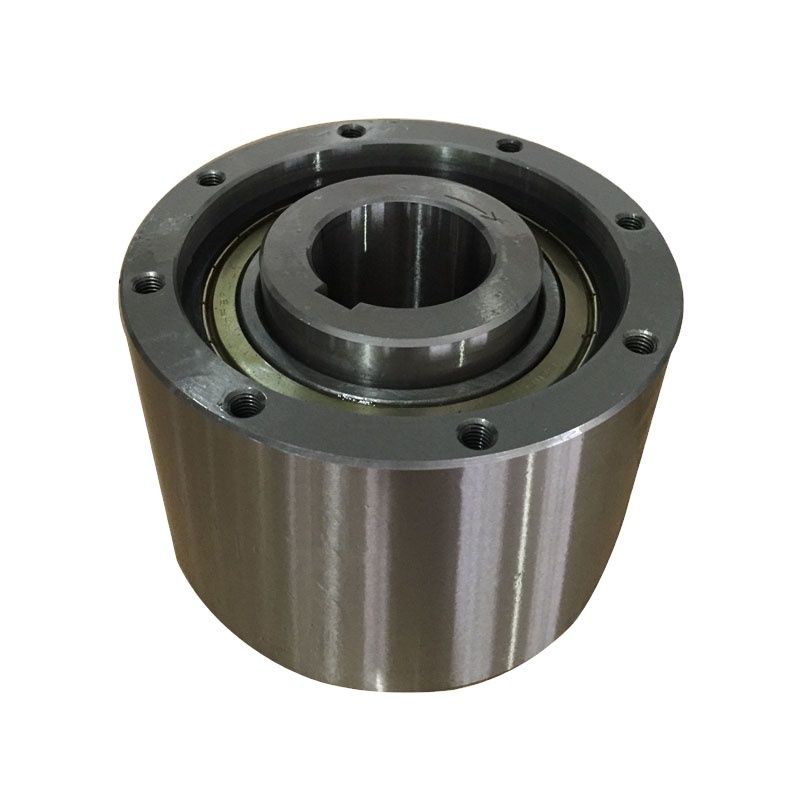

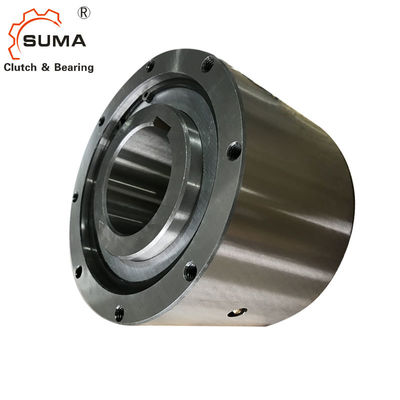

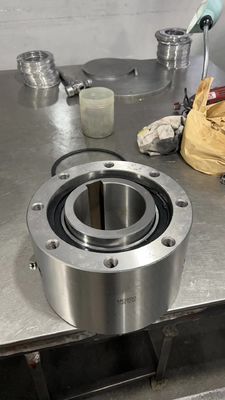

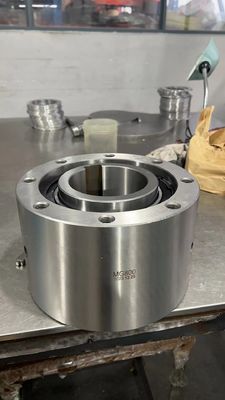

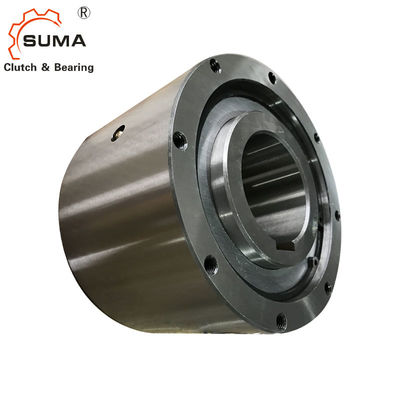

CAM Clutch Bearing MI500 MG500 31.5mm Bore Sealed P0 Precision

제품 상세 정보:

원래 장소:	중국 장수
브랜드 이름:	Suma
모델 번호:	MI500 MG500

결제 및 배송 조건:

최소 주문 수량:	2
가격:	$100

접촉

상세 제품 설명

정밀 등급:	P0	밀봉 종류:	봉인
유형:	캠	Dia를 지녔습니다.:	31.5mm
키웨어:	7mm x3mm	무게:	5.0 킬로그램
샤프트 허용한도:	H6 또는 H7 (JIS 표준)	주요 표준:	JIS B1301-1959
최대 온도:	70' Ｃ	매끄럽게 하기:	밀봉되지 않은 오일 (사용 전 공급)
탑재 방향:	수직 (세부 사항에 대한 상담)	추력 부하:	지원되지 않음 (다른 장치 사용)
키 타입:	병렬 키 전용	압력 환기:	MG 시리즈에 필요합니다
초과 속도:	MG750 이상을 지정하십시오
강조하다:	CAM Clutch Bearing 31.5mm bore , Sealed P0 precision clutch bearing , One way clutch bearing with warranty

Cam Clutch MI500 MG500 One Way Clutch Bearing

Product Features

MG Series Cam Clutch is designed for inner race overrunning applications
MI Series Cam Clutch is optimized for indexing applications
Easy attachment to pulleys, gears, or sprockets using high-tension bolts
Compatible with JIS standard H6 or H7 tolerance bores
Includes pressure ventilation hole for MG Series models

Installation Guidelines

Use only parallel keys (tapered keys are prohibited)
For shock loads or full torque capacity, use hardened key and shaft
Apply mounting pressure only to the inner race, never the outer race
Thrust load must be handled by separate devices, not the clutch
For MG Series models MG750 and above, specify overrunning speed when ordering
Consult manufacturer for vertical mounting applications

Operating Conditions

Monitor temperature - longevity decreases above 70°C outer race temperature
For continuous overrunning at medium/high speeds, consider oil bath or forced lubrication
No oil is sealed during shipment - add appropriate lubrication before use

Model Specifications
