Name: GFK Series One Way Clutch Bearing Sprag Type Backstop Clutch with Precision Rating P0 Bore Diameter 20-50mm and Outer Diameter 37-42mm
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: GFK50
Price: 85 USD
Availability: InStock

홈 제품 소개 한 방법 크러치 베아링

GFK Series One Way Clutch Bearing Sprag Type Backstop Clutch with Precision Rating P0 Bore Diameter 20-50mm and Outer Diameter 37-42mm

제품 상세 정보:

원래 장소:	중국 장수
브랜드 이름:	SUMA
모델 번호:	GFK50

결제 및 배송 조건:

최소 주문 수량:	2
가격:	$85

접촉

상세 제품 설명

정밀 등급:	P0	밀봉 종류:	봉인
유형:	스프라그	외경:	37-42mm
지름 지름:	20-50mm	작업 온도:	-20 ° C ~ + 100 ° C
구조:	Sprag Freewheel	토크 용량:	41-240Nm
오버러닝 속도:	5500-3400분-1	베어링 시리즈:	5904-5910
동적 로드 롤러:	4400-10000N	동적 로드 볼:	2750-7800N
정적 로드 롤러:	2900-6950N	정적 하중 볼:	2750-7800N
무게:	0.09-0.36kg
강조하다:	Precision Rating P0 One Way Clutch Bearing , Bore Diameter 20-50mm Sprag Type Backstop Clutch , Outer Diameter 37-42mm GFK Series Bearing

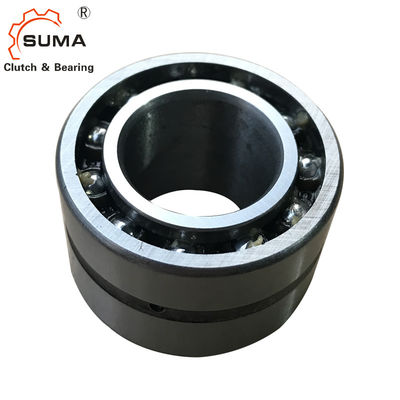

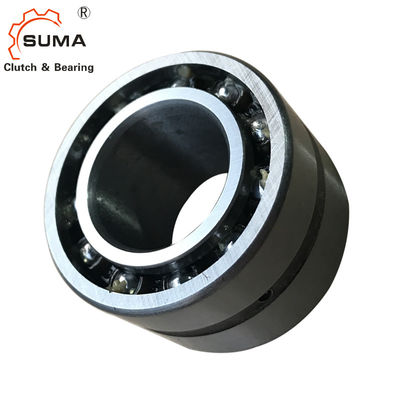

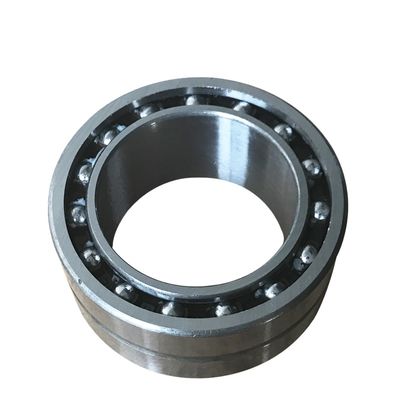

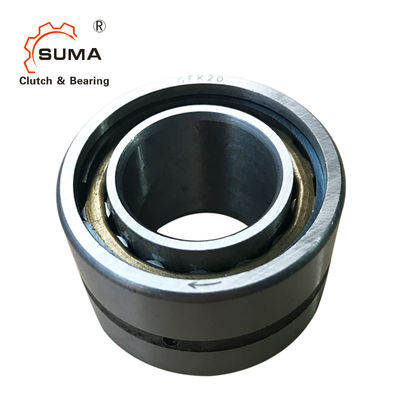

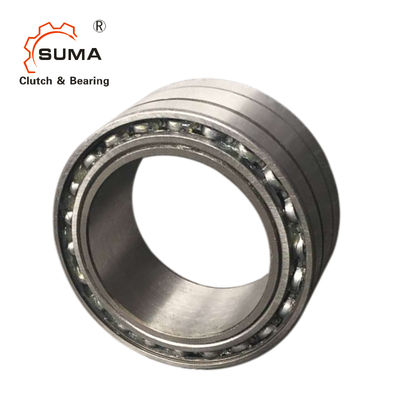

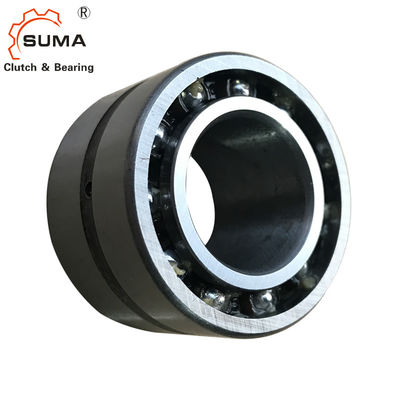

Changzhou Suma GFK50 One Way Sprag Type Backstop Clutch GFK Series Bearings

Product Description

Features of GFK Sprag Clutch

Type GF, GFK is a sprag freewheel integrated into a 59 series ball bearing
Design provides high torque capacity for minimal outside diameter

Structure of GFK Sprag Clutch

It is a bearing supported type, delivered grease lubricated. Oil bath lubrication is also possible. Whatever the lubrication type, seals should be provided.

Installation Instruction of GFK Sprag Clutch

Torque transmission must be ensured by a press fits assembly into a rigid outer housing with R6 tolerance, and onto a shaft with P5 tolerance.

Catalogue of GFK Sprag Clutch

Type	Size	Overrunning speeds	Bearing series	Loads	Weight
	d [mm]	TKN [Nm]	n imax [min-1]	n amax [min-1]
GFK	20	51	5500	4000	5904	0.09
	25	65	5300	3800	5905	0.11
	30	95	5000	3500	5906	0.13
	35	204	4600	3200	5907	0.2
	40	315	4200	3000	5908	0.3
	45	370	3800	2500	5909	0.34
	50	460	3400	2200	5910	0.36
