| 정밀 등급: | P0 | 밀봉 종류: | 봉인 |
|---|---|---|---|
| 베어링 유형: | 스프라그 | 재료: | GCR15 |
| 명목상 토크: | 325Nm | 최대 속도: | 15000 분 -1 |
| 보어 크기: | 최고 40까지 밀리미터 | 동적 하중: | 15.54kN |
| 정적 부하: | 12.25kN | 무게: | 0.5 kg |
| 당기 톱크: | 7Ncm | 내 직경: | 8-40 밀리미터 |
| 외경: | 22-80 밀리미터 | 길이: | 9-27 밀리미터 |
| 베어링 시리즈: | 6201-6207 | ||
| 강조하다: | CSK356217 One Way Clutch Bearing,CSK356218 Sprag Clutch Bearing,Precision Rating P0 Freewheel Clutch Bearing |
||

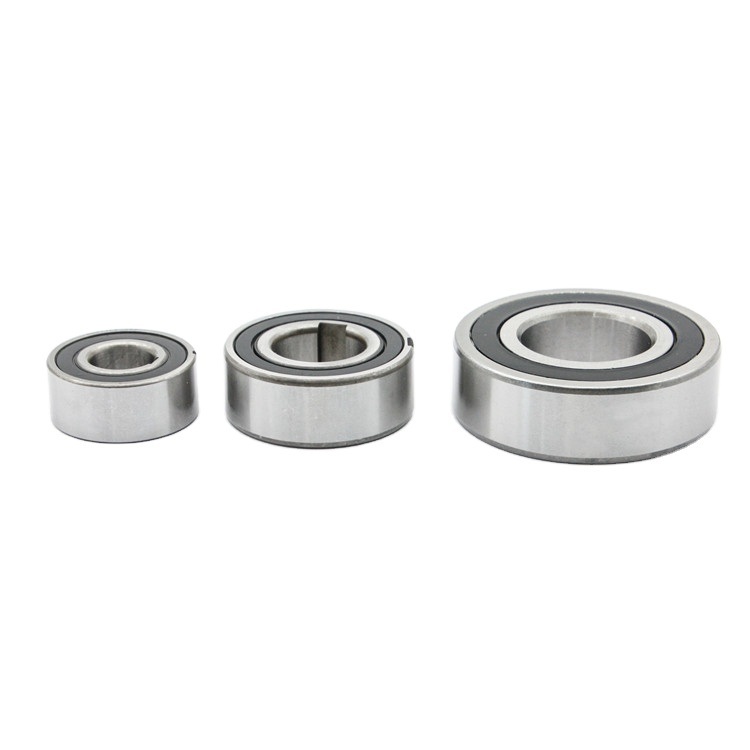

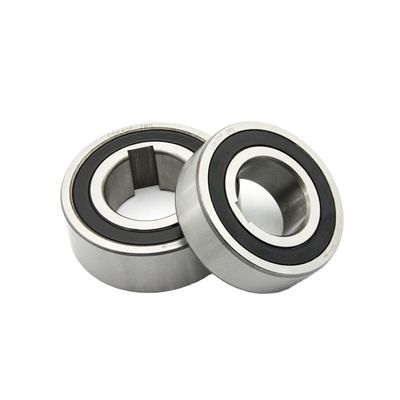

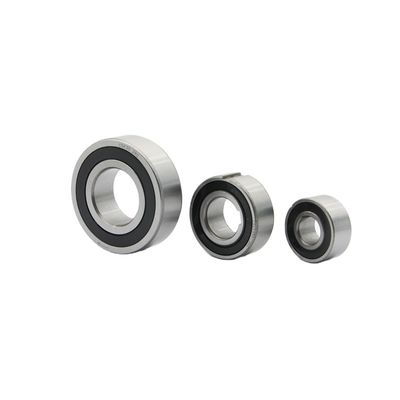

CSK series one way freewheels are sprag freewheels with bearing support and ball bearing properties. The freewheels are supplied grease-filled for normal operating conditions.
The freewheel is built into the customer housing, enabling compact, space-saving fitting solutions.
Nominal torques up to 325 Nm. The torque is transmitted on the inner ring and/or on the outer ring by press fit or keyway connection. Bores up to 40 mm.
| Type | Size | Bearing series | TKN1 | N max | D | L | C | C0 | Weight | TR |
|---|---|---|---|---|---|---|---|---|---|---|
| CSK (KK) | 8* | - | 2.5 | 15000 | 22 | 9 | 3.28 | 0.86 | 0.015 | 0.5 |
Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet
Small items: In stock.
Medium Items: 10-15 Days
Big items: 20-25 Days
