| 원래 장소: | 중국 |
| 브랜드 이름: | SUMA |
| 인증: | ISO SGS |
| 모델 번호: | RSBW50 |
| 최소 주문 수량: | 1 |
|---|---|
| 가격: | USD80-USD95PER PIECE |
| 포장 세부 사항: | 판지 상자 |
| 배달 시간: | 7~10일 |
| 지불 조건: | L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온, 페이팔 |
| 공급 능력: | 한 달에 1000pc |
| 제품명: | 백스톱 클러치 RSBW50 | 재료: | GCr15 베어링 강철 |
|---|---|---|---|
| 크기: | 45*132*52mm | 토크 용량: | 1295Nm |
| 회전 속도: | 300rpm | 단위 중량: | 4.6kg |
| 보증: | 1년 | OEM: | 수용하다 |
| 강조하다: | RSBW50 backstop clutch bearing,bucket elevator sprag bearing,one way backstop bearing |
||

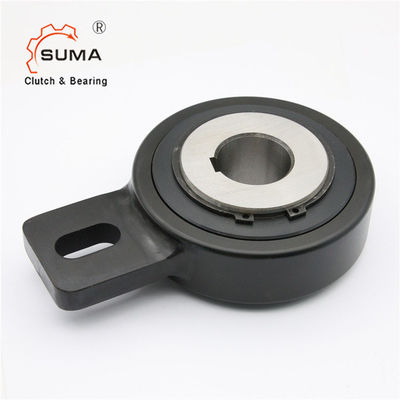

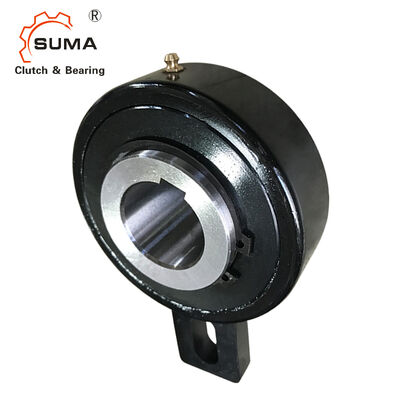

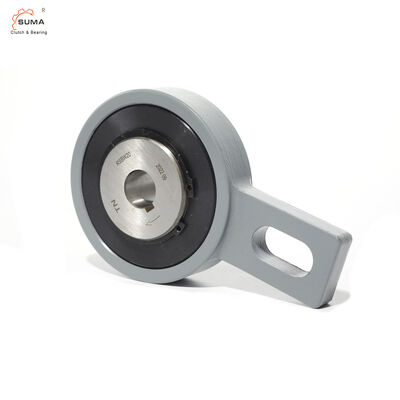

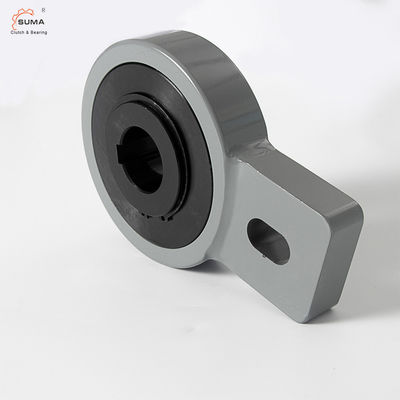

RSBW50 RSBW 50 One Way Sprag Bearing Backstop Clutch for Bucket Elevator
Features
Application:
Primarily used as a backstop. This type provide a high torque capacity with a minimum space requirement.
Structure:
Type RSBW is a DC sprag type freewheel. It is self-contained, centered by plain bearings for low rotational speeds, and sealed using shield protected O rings.
Technical Datas
| Product name | Sprag type freewheel clutches |
| Model | RSBW45 / RSBW50 / RSBW55 |
| Torque capacity | 1295Nm |
| Overrunning speeds | 300 min -1 |
| Inner diameter | 45mm / 50mm/ 55mm |
| Outer diameter | 132mm |
| Thickness | 52mm |
| Weight | 4.6kg |
| Application | Fishinery machinery, Reducer, household appliances |
| Package | Carton Box |
| Payment terms | TT, L/C, D/A, D/P, Western Union, Paypal |
| Delivery time | 7-10 Days |
Dimensions and Capacities
| Type | Size | Overrunning Speeds | Weight | |||||||||
|
|
dH7 | TKN1) | nimax | D | L 1 | F | E | B | N | L | bH11 | |
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |
| 20 | 375 | 400 | 106 | 35 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2 | |
| 25 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.6 | |
| 30 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.5 | |
| 35M | 375 | 400 | 106 | 35 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2 | |
| 35 | 606 | 400 | 106 | 48 | 113 | 102.5 | 40 | 35 | 15 | 18 | 2.4 | |
| 40 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.6 | |
| 45 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.5 | |
| 50 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.5 | |
| 55 | 1295 | 300 | 132 | 52 | 125 | 115 | 60 | 35 | 15 | 18 | 4.4 | |
| 60 | 2550 | 250 | 161 | 54 | 140 | 130 | 70 | 35 | 15 | 18 | 6.5 | |
| 70 | 2550 | 250 | 161 | 54 | 140 | 130 | 70 | 35 | 15 | 18 | 6.4 | |
| 80 | 4875 | 200 | 190 | 70 | 165 | 150 | 70 | 45 | 20 | 25 | 9.9 | |
| 90 | 4875 | 200 | 190 | 70 | 165 | 150 | 70 | 45 | 20 | 25 | 9.8 | |
Pictures
FAQ
Q: How do you pack the goods?
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
